Verify Strapping

1. Verify that all common or vertical seams are strapped appropriately inside and out.

2. Ensure that all openings are properly braced, strapped, and bucked.

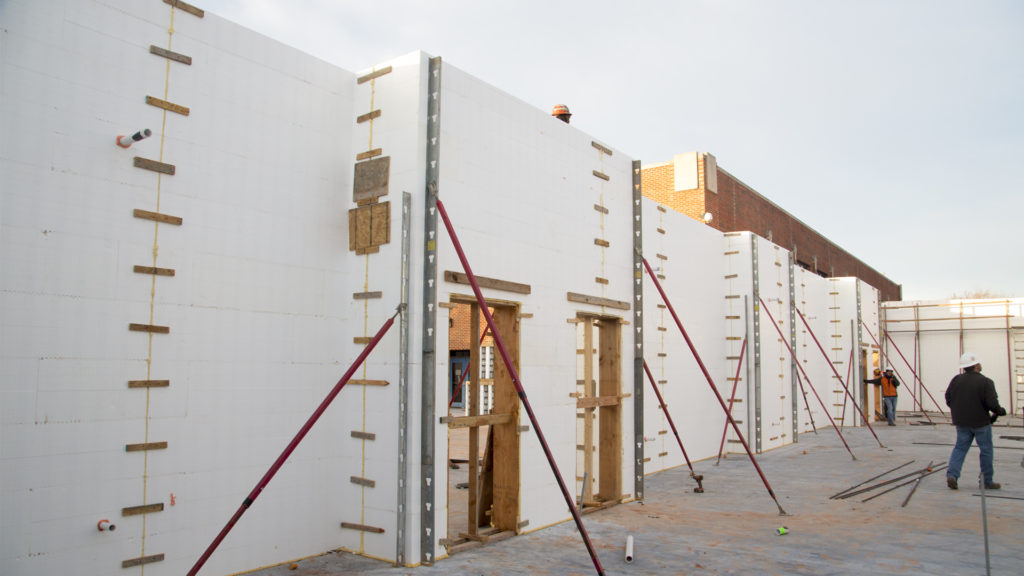

In this image, several vertical seams are strapped appropriately
In this image, several vertical seams are strapped appropriately

3. Ensure that all beam pockets, weld plates, floor system hangers, penetrations, or knockouts are in place and strapped.

4. Make sure all strapping is in place across seams or potential problem areas such as openings, near corners or vertical joints closer than 8” in the wall.

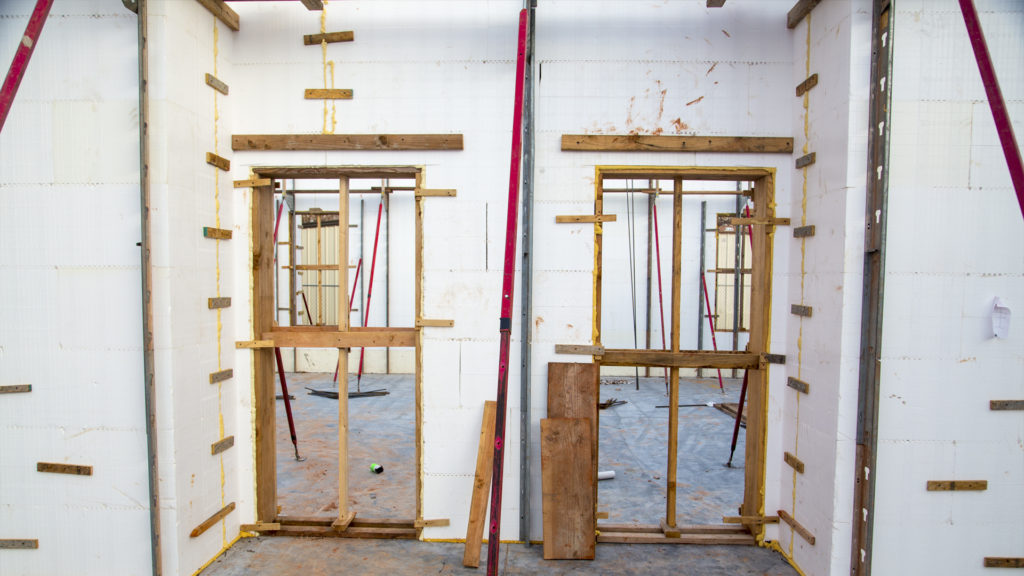

Two side by side door openings with adequate bracing, bucking, and strapping
Two side by side door openings with adequate bracing, bucking, and strapping
